Equinox Fusion 150 Spot
LX01-0002 - 8 Available
- LX Hire - Hire - Manual - DMX Channels -
Day £20.00 + Vat (£24.00)
Week £70.00 + Vat (£84.00)

The Fusion 150 Spot is a versatile lighting fixture powered by a robust 150W white LED,
boasting a 16 ° beam angle and motorized focus for sharp projections.
Elevate visual displays with its 3-facet circular rotating prism,

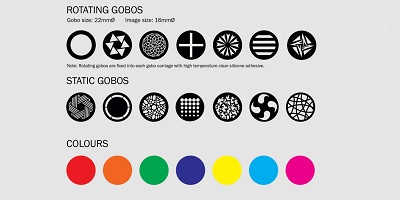

dual gobo wheels (6 rotating, replaceable gobos, and 7 static gobos),
and a colour wheel offering 7 vibrant colours.
Seamlessly switch between DMX, auto, sound active, manual control and
master/slave modes using the intuitive 4 button menu.

Power Input - 100v-240v, 50/60Hz
Power consumption: 170W - 0.75a 230v
Linking 230v 10a supply - 13
Linking 230v 16a supply - 21
Dimentions - 410 x 302 x 195 mm
Weight - 9.2kg

Features 1 x 150W white LED (8500K)
Beam angle: 16°
17,855 Lux @ 2m
2.9kHz refresh rate
Motorised focus
3 facet circular rotating prism
Frost filter (48 °)
Gobo wheel 1: 6 rotating, rotating, replaceable gobos + open
Gobo wheel 2: 7 static gobos + open
Colour wheel: 7 colours + open
DMX channels: 2/14 or 18 selectable
Auto, sound active, manual control and master/slave modes
Forward facing show mode
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540 °, Tilt: 270 °
0 - 100% dimming
Variable strobe
Quick release omega clamps included
Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
4 button menu with 2.6" LCD display
powerCON input/output
3-Pin XLR input/output
Fan cooled

DMX

2 Channel Mode

Channel 1 000-015 No Function

016-075 Show 1

076-135 Show 2

136-195 Show 3

196-255 Show 4

Channel 2 000-000 Auto

001-255 Sound Sensitivity (Low-high)

14 Channels

Channel 1 000-255 Pan Adjustment 0-540 °

Channel 2 000-255 Tilt Adjustment 0-270 °

Channel 3 000-255 Pan/tilt Speed

Channel 4 000-255 Master Dimmer

Channel 5 000-004 LED off

005-250 Strobe (Slow-Fast)

251-255 LED on

Channel 6 000-004 Open (White)

005-013 Split Colour (Open/Red)

014-022 Red

023-031 Split Colour (Red/Orange)

032-040 Orange

041-049 Split Colour (Orange/Green)

050-058 Green

059-067 Split Colour (Green/Blue)

068-076 Blue

077-085 Split Colour (Blue/Yellow)

086-094 Yellow

095-103 Split Colour (Yellow/Cyan)

104-112 Cyan

113-121 Split Colour (Cyan/Magenta)

122-130 Magenta

131139 Open (White)

140-195 Colour Scrool CW (Fast/Slow>

196-199 Colour Scrool Stop

200-255 Colour Scrool CCW (Slow-Fast)

Channel 7 000-007 Open

008-017 Gobo 1

018-027 Gobo 2

028-037 Gobo 3

038-047 Gobo 4

048-059 Gobo 5

060-067 Gobo 6

068-077 Gobo 1 Shake (Slow-Fast)

078-087 Gobo 2 Shake (Slow-Fast)

088-097 Gobo 3 Shake (Slow-Fast)

098-107 Gobo 4 Shake (Slow-Fast)

108-117 Gobo 5 Shake (Slow-Fast)

118-127 Gobo 6 Shake (Slow-Fast)

128-187 Gobo Wheel Scrool CCW (Fast-Slow)

188-193 Gobo Scrool Stop

294-255 Gobo Wheel Scroll CW (Slow-Fast)

Channel 8 000-007 Open

008-017 Rotating Gobo 1

018-027 Rotating Gobo 2

028-037 Rotating Gobo 3

038-047 Rotating Gobo 4

048-059 Rotating Gobo 5

060-067 Rotating Gobo 6

068-077 Rotating Gobo 1 Shake (Slow-Fast)

078-087 Rotating Gobo 2 Shake (Slow-Fast)

088-097 Rotating Gobo 3 Shake (Slow-Fast)

098-107 Rotating Gobo 4 Shake (Slow-Fast)

108-117 Rotating Gobo 5 Shake (Slow-Fast)

118-127 Rotating Gobo 6 Shake (Slow-Fast)

128-187 Gobo Wheel Scrool CCW (Fast-Slow)

188-193 Gobo Scrool Stop

294-255 Gobo Wheel Scroll CW (Slow-Fast)

Channel 9 000-007 No Function

008-129 Gobo Rotation CCW (Fast-Slow)

130-133 No Function

134-255 Gobo Rotation CW (Slow-Fast)

Channel 10 000-255 Focus

Channel 11 000-007 No Function

008-255 Frost

Channel 12 000-007 No Function

008-255 Prism

Channel 13 000-007 No Function

008-129 Prisum Rotation CCW (Fast-Slow)

130-133 No Function

134-255 Prism Rotation CW (Slow-Fast)

Channel 14 000-040 No Function

041-060 Enable BO Whilst Pan/Tilt

061-080 Disable BO Whilst Pan/Tilt

081-100 Enable BO Whilst Colour Change

101-120 Disable BO Whilst Colour Change

121-140 Enable BO Whilst Gobo Change

141 160 Disable BO Whilst Gobo Change

161-180 Enable BO Whilst Pan/Tilt, Colour & Gobo Change

181 200 Disable BO Whilst Pan/Tilt, Colour & Gobo Change

201-240 No Function

241-255 Motor Reset (Hold 3 Seconds)

18 Channels

Channel 1 000-255 Pan Adjustment 0-540 °

Channel 2 000-255 Pan Fine Adjust

Channel 3 000-255 Tilt Adjustment 0-270 °

Channel 4 000-255 Tilt Fine Adjustment

Channel 5 000-255 Pan / Tilt Speed

Channel 6 000-255 Master Dimmer

Channel 7 000-004 LED off

005-250 Strobe (Slow-Fast)

251-255 LED on

Channel 8 000-004 Open (White)

005013 Split Colour (Open/Red)

014-022 Red

023-031 Split Colour (Red/Orange)

032-040 Orange

041-049 Split Colour (Orange/Green)

050-058 Green

059-067 Split Colour (Green/Blue)

068-076 Blue

077-085 Split Colour (Blue/Yellow)

086-094 Yellow

095-103 Split Colour (Yellow/Cyan)

104-112 Cyan

113-121 Split Colour (Cyan/Magenta)

122-130 Magenta

131139 Open (White)

140-195 Colour Scrool CW (Fast/Slow>

196-199 Colour Scrool Stop

200-255 Colour Scrool CCW (Slow-Fast)

Channel 9 000-007 Open

008-017 Gobo 1

018-027 Gobo 2

028-037 Gobo 3

038-047 Gobo 4

048-059 Gobo 5

060-067 Gobo 6

068-077 Gobo 1 Shake (Slow-Fast)

078-087 Gobo 2 Shake (Slow-Fast)

088-097 Gobo 3 Shake (Slow-Fast)

098-107 Gobo 4 Shake (Slow-Fast)

108-117 Gobo 5 Shake (Slow-Fast)

118-127 Gobo 6 Shake (Slow-Fast)

128-187 Gobo Wheel Scrool CCW (Fast-Slow)

188-193 Gobo Scrool Stop

294-255 Gobo Wheel Scroll CW (Slow-Fast)

Channel 10 000-007 Open

008-017 Rotating Gobo 1

018-027 Rotating Gobo 2

028-037 Rotating Gobo 3

038-047 Rotating Gobo 4

048-059 Rotating Gobo 5

060-067 Rotating Gobo 6

068-077 Rotating Gobo 1 Shake (Slow-Fast)

078-087 Rotating Gobo 2 Shake (Slow-Fast)

088-097 Rotating Gobo 3 Shake (Slow-Fast)

098-107 Rotating Gobo 4 Shake (Slow-Fast)

108-117 Rotating Gobo 5 Shake (Slow-Fast)

118-127 Rotating Gobo 6 Shake (Slow-Fast)

128-187 Gobo Wheel Scrool CCW (Fast-Slow)

188-193 Gobo Scrool Stop

294-255 Gobo Wheel Scroll CW (Slow-Fast)

Channel 11 000-007 No Function

008-129 Gobo Rotation CCW (Fast-Slow)

130-133 No Function

134-255 Gobo Rotation CW (Slow-Fast)

Channel 12 000-255 Focus

Channel 13 000-007 No Function

008-255 Frost

Channel 14 000-007 No Function

008-255 Prism

Channel 15 000-007 No Function

008-129 Prisum Rotation CCW (Fast-Slow)

130-133 No Function

134-255 Prism Rotation CW (Slow-Fast)

Channel 16 000-015 No Function

016-075 Show 1

076-135 Show 2

136-195 Show 3

196-255 Show 4

Channel 17 000-000 Auto

001-255 Sound Sensitivity (Low-high)

Channel 18 000-040 No Function

041-060 Enable BO Whilst Pan/Tilt

061-080 Disable BO Whilst Pan/Tilt

081-100 Enable BO Whilst Colour Change

101-120 Disable BO Whilst Colour Change

121-140 Enable BO Whilst Gobo Change

141 160 Disable BO Whilst Gobo Change

161-180 Enable BO Whilst Pan/Tilt, Colour & Gobo Change

181 200 Disable BO Whilst Pan/Tilt, Colour & Gobo Change

201-240 No Function

241-255 Motor Reset (Hold 3 Seconds)

201-240 No Function
